- Naziv proizvoda

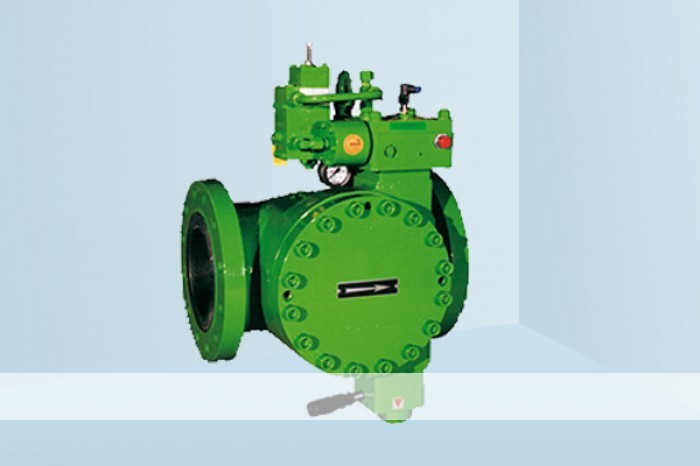

- HON 711 – DN 25 thru 150
- Kategorije
- Honeywell sigurnosni uređaji/Safety Shut-Off Valves
- Brend
- Honeywell
Features include:
-Very low pressure loss due to axial flow
-Four release options, standard design with manual release
-High response accuracy
-Available with actuator systems: K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
-Function Class A (B)
-Easy maintenance
-Optionally with vent valve HON 915
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED
-SIL certified according to IEC61508
-Max. admissible pressure PS: 100 bar
-Max. operating pressure pmax: up to 100 bar
Outlet pressure range
-For over-pressure Wdso 50 mbar to 90 bar
-For under-pressure Wdsu 10 mbar to 90 bar
Connection:
-DIN flange PN 25, PN 40 and Flange Class 300, Class 600 according to ANSI 16.5 in DN 25 to DN 150 Flange Class 900 upon request
-Response time t: 0.1 to 0.3 s
Additional features (as requested by customer)
-Electromagnetic release
-Electric signal sensor for valve position 'closed' (proximity switch)
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfill the ATEX requirements.
