- Naziv proizvoda

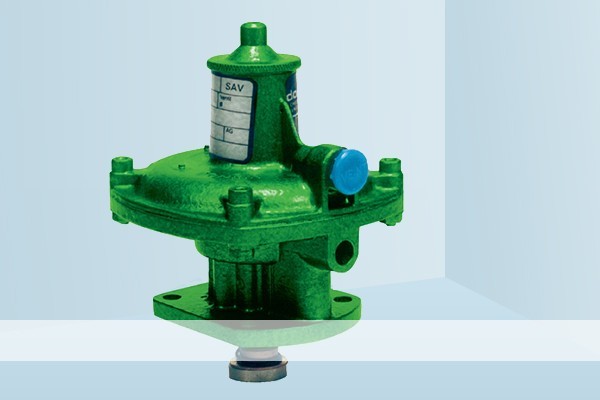

- HON 309
- Kategorije
- Honeywell sigurnosni uređaji/Safety Shut-Off Valves
- Brend
- Honeywell
Features include:
-Standalone SSV Series HON 291, utilizing S240 or S270 bodies
-Valve position indicator as standard, with remote indication available
-Over-pressure and under-pressure release
-Direct acting
-Re-engage by hand
-Easy to maintain
-Fast reactivity
-Thermal protective 'T-type' release available (gas flow is cut off as soon as the max. temperature is exceeded)
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-CE registration according to PED
-Max. valve chamber pressure pu max = 1 1 bar (on UK version approved to GIS/V9)
-Max. admissible pressure pmax and PS = 19 bar (10 bar for pilot controlled regulator)
-Temperature range: 40 to 60 °C
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device meet the ATEX requirements.
