- Naziv proizvoda

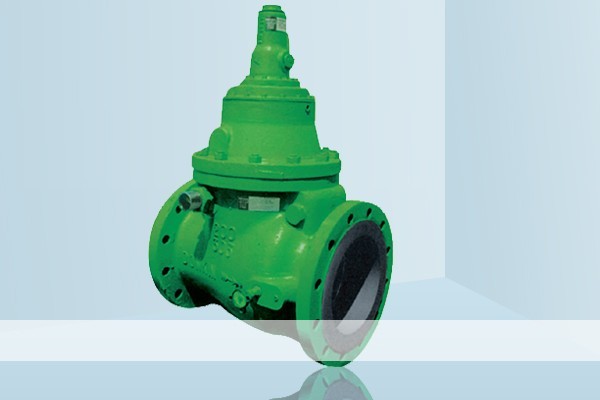

- HON 303 MK5
- Kategorije
- Honeywell sigurnosni uređaji/Safety Shut-Off Valves
- Brend
- Honeywell
Features include:
-To be installed on the inlet pressure side with an external measuring line leading to the outlet pressure side in order to ensure automatic closing of the station in the event of overpressure
-Operates with high accuracy and reliability
-Push button for pressure compensating valve
-Re-engage by hand
-Low-pressure loss; fully-automatic operation; no external power supply required
-Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
-CE registration according to PED
-Max. inlet pressure pmax: up to 7 bar
Setting range
-Series 303LP: 0.037 to 0.48 bar
-Series 303MP: 0.42 to 4.5 bar
-Pipe sizes: DN 250, DN 300
-Temperature range: 20 to 60 °C
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
