- Naziv proizvoda

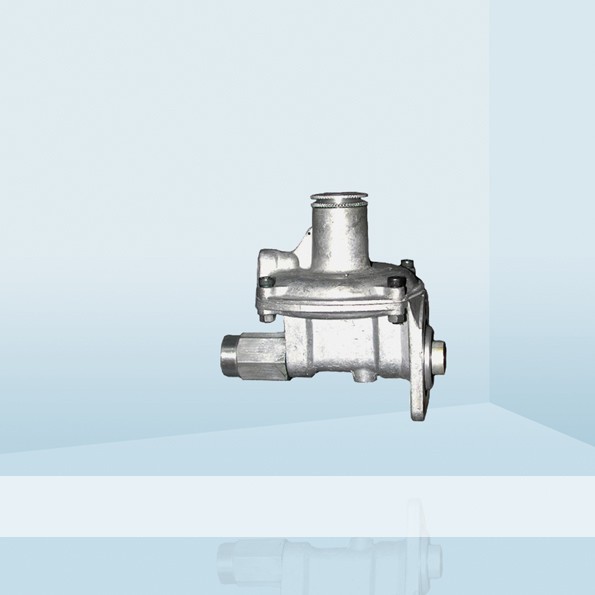

- HON 290
- Kategorije
- Honeywell sigurnosni uređaji/Safety Shut-Off Valves
- Brend
- Honeywell
Features include:
-Normally installed upstream of the regulator with the external control line piped
-Suitable for gases DVGW G 260, other gases on enquiry
-Optional with safety device against fire or elevated temperature
-Optional with internal measuring line (ILC) or external measuring line (ECL)
-Can be utilized independently with own body or integral with any HON gas pressure regulators
-Installation of different valve seat diameters is available
-Functional unit of the following gas pressure regulators: HON 240PL, HON 2473PL, HON 270, HON 272PL, HON 273PL, HON 280-309, HON 204
-CSA, AGA, CE and Measurement Canada Approved
-Max. service pressure pmax: 10 bar
-Setting range: 0.035 to 0.560 bar
-Sizes: pipe screw connection without brazing - R 1/2", R 3/4", R 1", R 1 1/4", R 1 1/2", R 2"
-Flange connection: 1" and 2" (inlet/outlet)
-Temperature range: -40°C to +60°C; -40° Fahrenheit to 140° Fahrenheit
-Options: SD – safety diaphragm/vent-less
