- Naziv proizvoda
- HON 655-DP
- Kategorije
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Piloti za gasne regulatore pritiska
- Brend
- Honeywell
Features include:

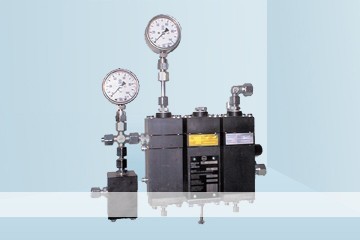

-Pilot with modular pilot and differential pressure stages
-With inlet-pressure and loading-pressure gauges and upstream fine-mesh filter
-HON 905, also available with outlet pressure gauge (optional)
-Optionally with vent valve HON 915
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED in combination with HON gas pressure regulators
-According to DIN EN 334, the pilot is an integral component of this device
-Max. admissible pressure PS = 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd
-Outlet pressure 0.3 bar to 90 bar
-Differential pressure 0.05 bar to 1.2 bar
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
