- Naziv proizvoda

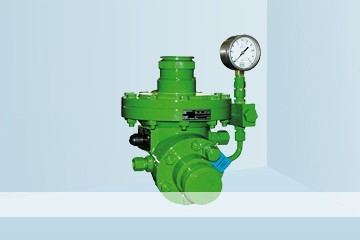

- HON 610
- Kategorije
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Piloti za gasne regulatore pritiska
- Brend
- Honeywell
Features include:
-Load-limiting and control stage in one housing (two-stage)
-Adaptable to various types of gas pressure regulators and regulating lines
-Equipped with loading pressure gauge and upstream fine mesh filter HON 905
-May be equipped with electric remote setpoint adjustment and automatic load limiting stage
-Optionally with vent valve HON 915
-Suitable for non-aggressive gases, other gases on enquiry
-Special version available for oxygen
-CE registration according to PED in combination with HON Gas Pressure Regulators
-According to DIN EN 334, the pilot is an integral component of this device
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.01 bar up to 3.5 bar
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
