- Naziv proizvoda

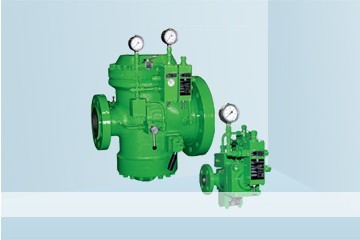

- HON 503 Gas Regulator
- Kategorije
- Honeywell-RMG Kassel, Bryan Donkin, Gorter /Gasni regulatori pritiska do ANSI 600 i ventili sa električnim aktuatorom
- Brend
- Honeywell
Features include:
-Wide inlet pressure range
-Outlet DN double as inlet DN
-Fewer parts, easy to maintain, quiet operation
-Grid plate for noise reduction
-Also available with metal foam for additional noise reduction
-Version with Safety Shut-off Valve (SSV), actuators K 1a, K 2a/1, K 2a/2, K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
-Suitable for non-aggressive gases, other gases on enquiry
-CE registration according to PED
-Max. admissible pressure PS: 100 bar
-Max. inlet pressure pu max: up to 100 bar
-Outlet pressure range Wd: 0.3 bar to 90 bar
-Minimum pressure drop: 1.5 bar (4 bar for DN 25/25), others on enquiry
-Max. pressure drop: 90 bar
-Class of lock-up pressure zone: SZ 2.5
SSV setting range
-For overpressure: Wdo 50 mbar to 90 bar
-For underpressure: Wdu 10 mbar up to 90 bar
Connection
-DIN flange PN 40 and Class 150 according to ANSI 16.5 for DN 25/25
-Flange Class 300, Class 600 according to ANSI 16.5
-With pipe sizes inlet/outlet - DN 25/25, DN 25/50, DN 50/100, DN 80/150, DN 100/200, DN 150/300
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
